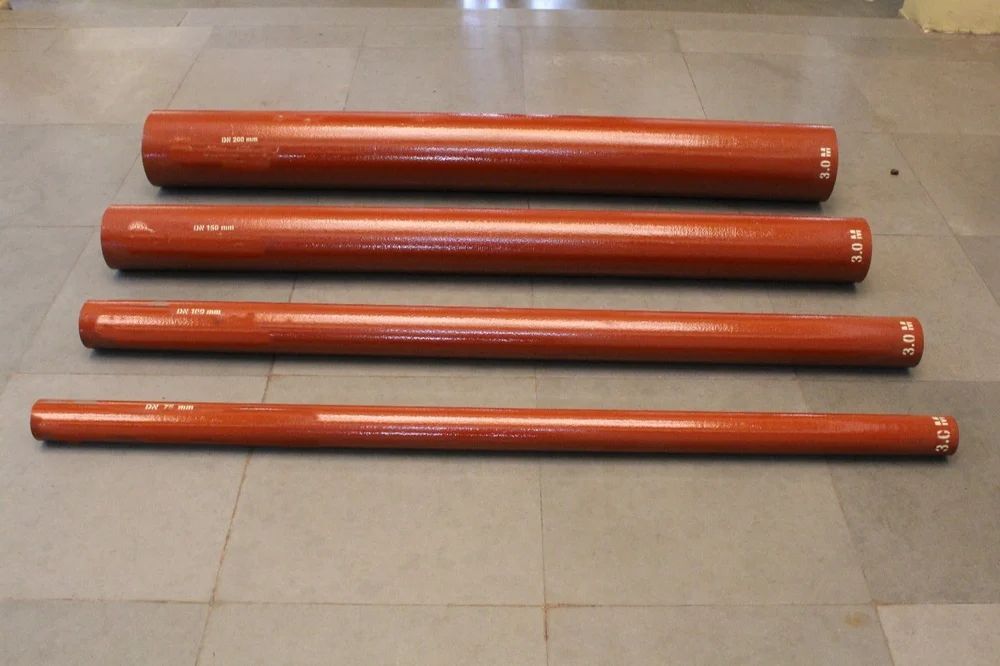

C.I., D.I. Socket Spigot Pipe

C.I., D.I. Socket Spigot Pipe Specification

Connection
Other

Shape
Round

C.I., D.I. Socket Spigot Pipe Trade Information

Minimum Order Quantity
100 Meters

Supply Ability
500 Meters Per Week

Delivery Time
1 Week

About C.I., D.I. Socket Spigot Pipe

C.I., D.I. Socket Spigot Pipe is a special type of pipe fitting that is designed and developed by using advanced production technologies that makes it free from manufacturing flaws. Its unique design allows connecting two pipes by inserting one pipe into another. It is commonly used in the underground water supply or drainage systems to deliver a large volume of pressurized liquid. Buy from us this heavy-duty C.I., D.I. Socket Spigot Pipe within various lengths and diameters.

C.I., D.I. Socket and Spigot Pipe

Nominal diameter	External diameter	Socket mass	Barrel wall thickness e				Approx mass per mtr. Including socket
Nominal diameter	External diameter	Socket mass	Barrel wall thickness e				Tar coated		Cement lined
DN	DE		K7	K8	K9	K10	K-7	K-9	K-7	K-9
80	98	3.7	5	6	6	6	10.92	12.82	13.52	15.45
100	118	5.1	5	6	6	6.1	13.28	15.89	16.58	19.27
125	144	7	5	6	6	6.3	16.43	20	20.50	24.27
150	170	8.2	5	6	6	6.5	19.59	24.09	24.59	29.27
200	222	12.4	5	6	6.3	7	25.87	32.48	32.57	39.27
250	274	15.8	5.3	6	6.8	7.5	34.08	42.75	42.58	51.77
350	326	18.6	5.6	6.4	7.2	8	43.08	54.18	53.28	64.36
400	378	23.8	6	6.8	7.7	8.5	53.35	67.17	65.65	79.5
450	429	29.3	6.3	7.2	8.1	9	63.88	80.33	77.88	94.33
450	480	34	6.6	7.6	8.6	9.5	75.2	95.83	90.6	111.17
500	532	42.8	7	8	9	10	88.53	111.5	106.03	129
600	635	59.3	7.7	8.8	9.9	11	116.88	147	137.78	167.83
700	738	79.1	8.4	9.6	10.8	12	148.88	187317	178.18	216.5
750	790	90	8.7	10	11.3	12.5	165.63	210	196.53	240.83
800	842	103	9.1	10.4	11.7	13	186.55	233.82	219.95	267.27
900	945	130	9.8	11.2	12.6	14	226.62	283.82	264.22	321.45
1000	1048	162	10.5	12	13.5	15	270.63	338.55	312.33	380.18.
1100	1152	200	11.2	12.8	14.4	16
1200	1255	238	11.9	13.9	15.3	17
