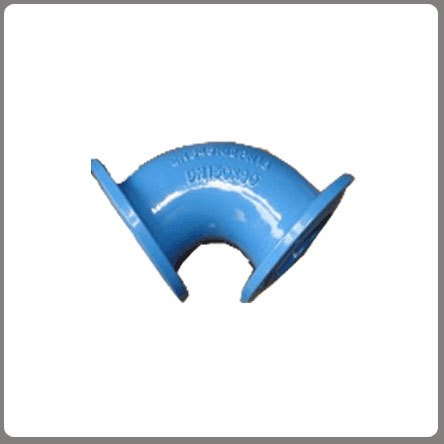

Double Flange Bend

Double Flange Bend Specification

Bend Radius
90, 45, 22.5, 11.25 (Standard angles)

Sealing Type
Gasket seal (Rubber/EPDM)

Yield Strength
300 MPa

Tensile Strength
420 MPa

Coating Type
Epoxy / Bitumen

Tolerance
2 mm

Flexibility
Rigid

Connection Type
Bolted Flange

Temperature Range
-10C to 80C

Thread Type
Non-threaded

Diameter
80 mm 1200 mm

Product Type
Double Flange Bend

Material
Ductile Iron / Cast Iron

Connection
Double Flanged

Shape
Bend (Curved)

Standard
IS: 1538 / BS 4772 / ISO 2531

Surface Treatment
Fusion Bonded Epoxy Coating / Painted

Outer Diameter
80 mm 1200 mm

Section Shape
Round

Length
Customized as per order

Thickness
8 mm 20 mm

Color
Blue / Black / Red

Usage
Water & Sewage Pipeline Bends

Rated Pressure
PN10 / PN16 / PN25

Material Grade
DI K7 / K9 / CI FG 260

Application
Municipal, Industrial, Irrigation piping systems

Hydrostatic Test Pressure
1.5 times rated pressure

Flange Drilling
As per IS 1538 / BS EN 1092-2

Ends Type
Drilled as per IS/BS/EN

Applicable Fluid
Water, Sewage, Non-corrosive liquids

Minimum Order Quantity
As per customer requirement

Internal Coating
Cement Mortar Lined

Corrosion Resistance
High

Manufacturing Process
Centrifugal Casting

Leak Proof Test
100% tested at factory

Joint Type
Flanged Joint

Packaging
Loose / Bundled / Wooden Pallet

Double Flange Bend Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Months

About Double Flange Bend

To control the flow of liquids as well as the pressure of fluids, gas, and sewages, our double flange bend is attached to pipes. It is designed for bending in a double curvature as a result of the connected element's restraint. The flange will curve in one direction when there is no restraint force. A classic recessed mount extrusion, the double flange bend has flanged edges that conceal the recessed edge for a sleek and contemporary installation. When uniformly smooth lighting is required, blend to reduce potential LED dotting with a little more regression.

Robust Design for Pipeline Integrity

Double Flange Bends are built to enhance pipeline durability and integrity. With a round section shape and internal cement mortar lining, these bends offer superior mechanical properties and corrosion protection, vital for long-lasting water and sewage flow systems. Their rigid structure guarantees reliable performance under varying operational pressures and thermal conditions.

High-Performance Coating & Testing

These bends receive fusion bonded epoxy or bitumen coatings for heightened corrosion resistance. Every unit undergoes factory leak-proof testing at 1.5 times the rated pressure, ensuring operational reliability. With close manufacturing tolerances of 2 mm and precise drilling standards, you receive a product engineered for safety, efficiency, and minimal maintenance.

FAQs of Double Flange Bend:

Q: How is the Double Flange Bend installed in pipelines?

A: Installation is achieved by bolting the drilled flanged ends to matching pipeline flanges, using gasket seals for a robust, leak-proof connection. Skilled personnel should ensure flange alignment and correct torque as per IS 1538 or BS EN 1092-2 standards.

Q: What fluids can be transported using this flange bend?

A: It is suitable for water, sewage, and various non-corrosive liquids, making it ideal for municipal, industrial, and irrigation piping systems. The internal cement mortar lining and external coatings provide additional fluid compatibility and protection.

Q: When is this product recommended for use?

A: Double Flange Bends are recommended for pipeline sections requiring directional changes with high mechanical strength and enhanced corrosion resistance, particularly in water and sewage distribution infrastructure or industrial fluid transport.

Q: Where can these flange bends be utilized?

A: They are widely used in municipal water supply, sewage treatment plants, industrial fluid piping, and irrigation projects throughout India and in international export markets.

Q: What is the process for manufacturing these bends?

A: Manufactured using centrifugal casting, the bends are precision-machined and internally lined with cement mortar. Flanged ends are drilled per IS/BS/EN standards, and the surface is treated with fusion bonded epoxy or bitumen coating before undergoing stringent leak-proof testing.

Q: How does the product benefit pipeline systems?

A: It delivers high durability, excellent corrosion protection, and leak resistance. The design minimizes maintenance needs, ensures system reliability under pressure, and accommodates standard bend radii to suit various layout requirements.
